The proximity measurement chains signal conditioner is newly upgrade from IQS450(with the part number (204-450-000-002) to IQS900 (with the part number 204-900-000-011). Additionally, IQS900 signal conditioner is backward compatible replacement for IQS450.

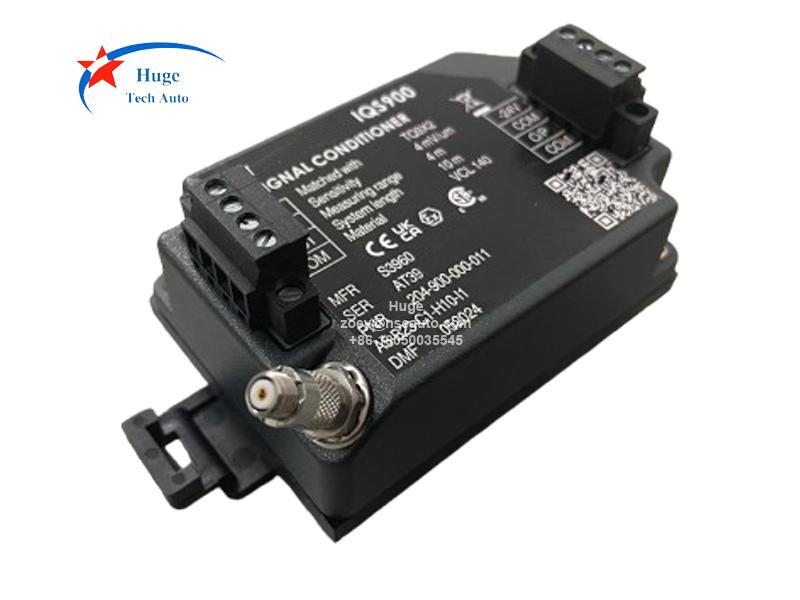

IQS900 204-900-000-011
Besides cosmetic modifications in appearance, this upgrade brings significant technical improvements to the module itself. One notable feature that sets the IQS900 apart from the IQS450 is its integrated diagnostic function. The diagnostic can detect the circuit in the sensor, integral cable and extension cable, the component defects in the system as well as the voltage on the power supply. IQS900 with diagnostics are SIL 2 , suitable for use in hazardous site.

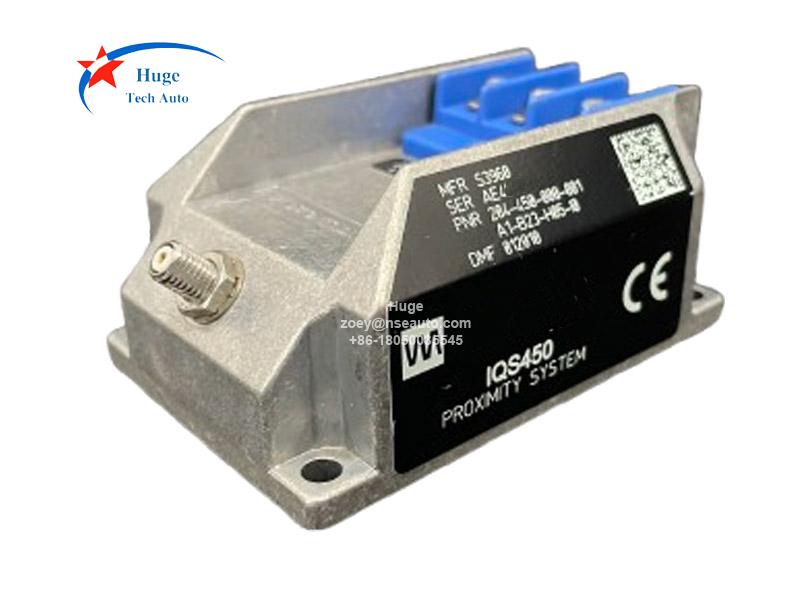

IQS450 204-450-000-002
Key Features:
Enhanced reliability
Low significant risk
Compliant with EC 61508 and Cat 1 PL c in accordance with ISO 13849.
Optional diagnostics
Backward compatibility with the IQS450
Compliant to API670 ed. 5th
Certificate for multiple EX
The raw voltage signal is accessible from the “RAW” pin without device disconnection.
Configurable sensitivity and measuring range

Ordering number:
The IQS900 and IQS450 are the configurable products. When ordering a signal conditioner, the ordering number is necessary, and the ordering number are used to specify the configuration of the device. The below form shows the difference between IQS900 and IQS450 ordering number.









































IQS Coding


IQS900



204-900-000-011


IQS450



204-450-000-002


Comments


A: Environment


A5


A2, A3


A5 the unique coding for all Ex certifications


B: Sensitivity


B21, B22, B23, B24


B21, B22, B23, B24


Same


C: Diagnostic


C2


None


New diagnostic feature, C2 represent With



diagnostics (SIL)


H:Total System length


H01, H05, H10


H01, H05, H10


Same


I: Installation


I0, I1


I0, I1


Same
